How Welding Table Clamps Work – A Simple Guide

Welding table clamps are an essential tool for any welder. Without the right clamp, achieving precise, high-quality welds can be difficult.

These clamps are crucial for securing workpieces, preventing unwanted movement during welding. This ensures both stability and accuracy.

In this post, you’ll learn what welding table clamps are, why they’re important, and how they work to improve your welding results.

Understanding Welding Table Clamps

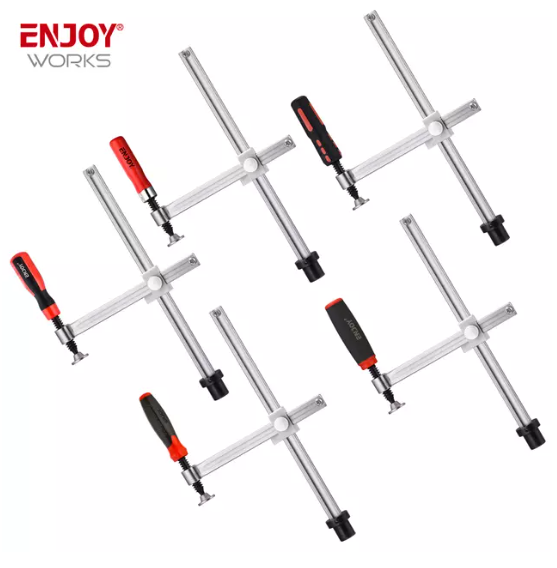

What is a Welding Table Clamp?

Welding table clamps are tools designed to secure workpieces onto welding tables, ensuring stability during the welding process. They are specifically built to withstand the forces and heat generated during welding. The clamp’s purpose is simple: hold materials firmly in place so welders can focus on their craft without worrying about movement or misalignment.

Components of a Welding Table Clamp

A welding table clamp consists of three primary components:

• Jaws: The part of the clamp that grips the workpiece. Jaws come in various sizes and are made from durable materials like steel to resist heat and wear.

• Handle: The handle allows for tightening or loosening the clamp. It’s used to apply the necessary clamping force to secure the workpiece.

• Base: This part attaches the clamp to the welding table, typically fitting into pre-made holes. The base ensures that the clamp stays in position during the welding process.

How Welding Table Clamps Work

Here’s how a welding table clamp works step by step:

1. Positioning the Clamp
   First, position the clamp over the workpiece, ensuring it aligns with the area you wish to weld.

2. Securing the Workpiece
   Place the workpiece between the clamp’s jaws and begin tightening. The jaws will secure the piece firmly against the table.

3. Adjusting the Clamping Force
   Adjust the handle to apply the right amount of clamping force. Too little force may allow movement, while too much could damage the workpiece.

4. Ensuring Stability During Welding
   Once secured, the clamp holds the workpiece steady, ensuring no movement during the welding process, which is crucial for precision.

Types of Welding Table Clamps

What are the Different Types of Welding Table Clamps?

There are several types of welding table clamps, each designed for specific welding needs.

• C-Clamps
  C-clamps are heavy-duty clamps designed for larger or thicker materials. They have a simple screw mechanism and offer excellent holding force.

• Toggle Clamps
  These clamps use a lever to apply clamping force, making them faster and easier to use, especially in production environments. They are highly reliable for repetitive tasks.

• Bar Clamps
  Ideal for clamping long or rectangular workpieces, bar clamps provide even pressure along the length of the material, ensuring a secure hold.

• F-Clamps and Locking Pliers
  Versatile and adjustable, these clamps are great for various shapes and sizes. They are especially useful when dealing with irregularly shaped workpieces or areas that need extra precision.

Choosing the Right Welding Table Clamp

How Do I Choose the Right Clamp for My Welding Project?

Choosing the right welding table clamp is essential for securing your workpiece and ensuring a precise weld. Here are key factors to keep in mind:

• Workpiece Size and Shape
  The size and shape of your workpiece play a major role in determining the type of clamp you need. Larger or irregularly shaped pieces may require a different clamp than smaller, more uniform workpieces. For example, a bar clamp works well for long, flat pieces, while a C-clamp might be better for thick, heavy materials.

• Clamp Type
  The welding process you’re using influences the type of clamp needed. For MIG or TIG welding, you may want clamps that hold the material securely without much pressure. On the other hand, when performing ARC welding, higher clamping forces might be needed for stability. Always match the clamp type to your welding method.

• Clamping Force Needed
  Different materials and welding tasks require different amounts of clamping force. For thin, delicate metals, apply moderate pressure to avoid damage. Heavier metals, like steel, will require more clamping force to keep them stable during welding.

Material Compatibility: Steel vs. Aluminum

The material you’re working with affects your choice of welding clamp. Steel, being dense and strong, requires a clamp with higher holding capacity and sturdy components. Aluminum, on the other hand, is lighter and more prone to warping, so it may need a clamp that applies force more gently to avoid damaging the material. Always ensure your clamp is designed for the material you're working on to prevent issues like slippage or excessive deformation.

How to Use Welding Table Clamps Effectively

Proper Placement and Alignment of Clamps

To get the best results, it’s essential to place your welding clamps correctly. Start by positioning the clamp to apply pressure directly over the joint you plan to weld. This ensures the workpiece stays in place while you work. Make sure the clamp’s jaws are aligned with the material, applying even pressure for stability. Misalignment can result in a weak weld or cause the workpiece to shift.

Choosing the Correct Clamping Force

Choosing the right clamping force is crucial. Too little force may allow the workpiece to move during welding, resulting in imprecise welds. On the other hand, too much clamping force can deform the workpiece, causing warping or damaging delicate materials. Adjust the clamp so that the pressure is firm but not excessive, ensuring the workpiece stays steady without risk of damage.

Avoiding Common Clamp Mistakes

• Over-tightening Clamps
  Over-tightening can lead to warped materials or stripped threads on the clamp. Use just enough pressure to keep the workpiece in place.

• Misaligning Clamps with the Workpiece
  Ensure that the clamp is positioned correctly to avoid uneven pressure. Misalignment can cause poor weld quality and may lead to inaccurate workpiece positioning.

Common Welding Clamp Issues and Troubleshooting

What Are Common Issues with Welding Clamps?

• Difficulty in Tightening
  If the clamp is hard to tighten, check for dirt or debris in the screw mechanism. Clean the clamp thoroughly or apply lubrication to ensure smooth movement.

• Misalignment or Slippage
  Misalignment or slippage often occurs if the clamp is not secured properly. Make sure the clamp is positioned correctly, and if slippage continues, try using a different clamp or additional clamps for added stability.

How Do You Maintain Welding Clamps?

To keep your clamps in good condition, clean them regularly to remove any debris or welding residue. Inspect them frequently for signs of wear, and lubricate moving parts to keep them functioning smoothly. Store clamps in a dry area to prevent rust and corrosion, ensuring they last longer.

Improving Welding Productivity with Clamps

How Do Welding Table Clamps Improve Efficiency?

Welding clamps can significantly boost productivity. They reduce the time spent adjusting and repositioning workpieces. Clamps also improve welding accuracy and precision by holding the workpiece in the correct position. With clamps securely in place, you can focus on your welding tasks rather than worrying about the material shifting.

What Are the Benefits of Using Multiple Clamps?

Using multiple clamps allows you to secure different parts of the workpiece, especially large or complex items. This prevents shifting or movement during welding and ensures better alignment, leading to higher-quality welds.

Welding Clamp Safety Tips

What Safety Considerations Should Be Followed When Using Welding Clamps?

• Ensure Stable Clamp Positioning
  Always check that the clamp is firmly secured before starting your weld. An unstable clamp can cause movement and inaccurate welds.

• Wear Protective Gear
  Safety should always come first. Wear gloves, safety glasses, and other protective gear to avoid burns or accidents while welding.

• Do Not Over-tighten Clamps
  Over-tightening can damage both the workpiece and the clamp. Apply only enough pressure to keep the material steady.

Maintaining and Caring for Welding Table Clamps

How Do You Clean and Maintain Welding Clamps?

Regularly inspect your clamps for wear and tear. Clean them after each use to remove any dirt, dust, or welding residue. Lubricate the moving parts to ensure they function properly, and store them in a dry, cool location to prevent rust.

How to Extend the Lifespan of Your Welding Clamps?

To extend the lifespan of your welding clamps, perform routine maintenance like cleaning and lubrication. Avoid using them for tasks they weren’t designed for, and store them properly to protect them from the elements.

Conclusion

Welding table clamps are essential for ensuring stability, accuracy, and safety in welding projects. They help secure workpieces, allowing for precise and high-quality welds.

When choosing and using welding clamps, it's crucial to select the right type and apply proper maintenance. This ensures better results and longer-lasting clamps for future welding tasks.

Q1: What are the different types of welding clamps available?

A: The most common types of welding clamps include C-Clamps, Toggle Clamps, Bar Clamps, F-Clamps, and Locking Pliers. C-Clamps are heavy-duty, Toggle Clamps are quick-release, and Bar Clamps are ideal for long, straight welds.

Q2: How do I choose the right clamping force for my project?

A: The right clamping force depends on the material's thickness and the welding process. Thicker materials require more force, while delicate materials need lighter clamping to prevent damage.

Q3: Can welding table clamps be used on other surfaces besides welding tables?

A: Welding clamps are designed specifically for welding tables. Using them on other surfaces may affect stability and weld precision.

Q4: How often should I inspect and maintain my welding clamps?

A: Inspect and clean clamps after each use. Lubricate moving parts regularly and check for wear or damage to ensure optimal performance.
